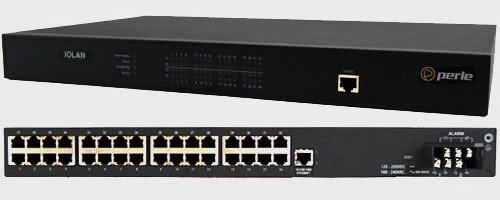

Console Server IOLAN SDSC LDC
Pour les Installations de Télécommunications - Certifié NEBS

- 8, 16 et 32 ports série sur RJ45 - RS232/422/485 par sélection logicielle
- Alimentation basse tension double : 18 - 72v DC ( Nominale 48v DC )
- Certification NEBS de Niveau 3 ( SR-3580 ), GR-1089-CORE, GR-63-CORE
- Fonctions de Sécurité Avancées incluant l’authentification RADIUS et TACACS
- Double Ethernet 10/100/1000 avec la Technologie Redundant Path
Les Ingénieurs et Chefs de Projet du Secteur des Télécommunications ont besoin de solutions Série à Ethernet économiques pour contrôler et gérer des équipements réseau, qui sont souvent installés dans des centres de données « lights-out », des sites POP distants ou des sites en colocation. Les Console Servers IOLAN SDSC LDC sont certifiés pour l’utilisation dans les environnements hostiles liés au secteur des Télécommunications, et spécifiés par la norme Telcordia Network Equipment Building Standard (NEBS) de Niveau 3.
Les Consoles Server IOLAN SDSC LDC sont idéaux pour :
- Les Ingénieurs et Chefs de Projet du Secteur des Télécommunications recherchant une solution Série-Ethernet de haute performance pour l’accès aux ports console Série d’équipements réseau
- Des Installations de Télécommunications nécessitant une solution de gestion out-of-band, incluant des fonctions de sécurité avancées et des certifications NEBS de Niveau 3.
Pourquoi les Console Servers IOLAN SDSC LDC sont le choix de prédilection:
- Certification NEBS de Niveau 3 délivrée par des organismes de testage certifiés
- Support d’une plage de tension étendue de 18 à 72v c.c, nécessaire pour la gestion d’installations de Télécommunications 48v c.c.
- Double Alimentation pour un accès au courant continu avec Tolérance de Panne
-
Fonctions de Sécurité Avancées :
- TACACS+, RADIUS pour assurer l'authentification, l'autorisation et la comptabilité centralisées
- Authentification forte à deux facteurs telle que SecureID de RSA
- Chiffrement de session HTTPS, SSL/TLS, SSH (AES, 3DES)
- Journalisation des pressions de touches et des données
- Broches de port série de type Cisco RJ45 pour assurer la connexion aux ports d'une console Cisco/Sun à l'aide d'un câble série CAT5 « enroulé » commun
- Un processeur 32 bits cadencé à 400 MHz, affichant une puissance de 750 MIPS, accompagné d'un coprocesseur de cryptage, pour le meilleur rendement disponible
- EasyPort Web – Accès aux ports de console série par navigateur Internet
- Accès par navigateur sans Java aux ports de consoles série éloignées par Telnet et SSH
- Garantie à vie, pour la meilleure protection de l'investissement disponible sur le marché actuel
Software Features - IOLAN SDSC LDC Console Server
Serial Port Access | |
---|---|
Connect directly using Telnet / SSH by port and IP address | |
Connect with EasyPort menu by Telnet / SSH | |
Use an internet browser to access with HTTP or secure HTTPS via EasyPort Web menu | |
Java-free browser access to remote serial console ports via Telnet and SSH | |
Ports can be assigned a specific IP address ( aliasing ) | |
Multisession capability enables multiple users to access ports simultaneously | |
Multihost access enables multiple hosts/servers to share serial ports | |
Accessibility | |
In-band ( Ethernet ) and out-of-band ( dial-up modem ) support | |
Dynamic DNS enables users to find a console server from anywhere on the Internet | |
Domain name control through DHCP option 81 | |
IPV6 and IPV4 addressing support | |
Availability | |
Primary/Backup host functionality enables automatic connections to alternate host(s) | |
Security | |
SSH v1 and v2 | |
PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0 | |
SSL Server and SSL client mode capability | |
SSL Peer authentication | |
IPSec VPN : NAT Traversal, ESP authentication protocol | |
SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305 | |
SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384 | |
Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2) | |
Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96 | |
Key exchange: RSA, EDH-RSA, EDH-DSS, ADH | |
X.509 Certificate verification: RSA, DSA | |
Certificate authority (CA) list | |
Local database | |
RADIUS Authentication, Authorization and Accounting | |
TACACS+ Authentication, Authorization and Accounting | |
LDAP, NIS, Kerberos Authentication | |
RSA SecureID-agent or via RADIUS Authentication | |
SNMP v3 Authentication and Encryption support | |
IP Address filtering | |
Disable unused daemons | |
Active Directory via LDAP | |
Terminal Server | |
Telnet | |
SSH v1 and v2 | |
Rlogin | |
Auto session login | |
LPD, RCP printer | |
MOTD - Message of the day | |
Serial machine to Ethernet | |
Tunnel raw serial data across Ethernet - clear or encrypted | |
Raw serial data over TCP/IP | |
Raw serial data over UDP | |
Serial data control of packetized data | |
Share serial ports with multiple hosts/servers | |
Virtual modem simulates a modem connection - assign IP address by AT phone number | |
Virtual modem data can be sent over the Ethernet link with or without SSL encryption | |
TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO, HP UX, NCR UNIX and AIX. For a complete list of all the latest drivers click here | |
"TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity" | |
RFC 2217 standard for transport of serial data and RS232 control signals | |
Customizable or fixed serial baud rates | |
Plug-ins allow customer or Perle provided plug-ins for special applications | |
Software Development Kit ( SDK ) available | |
Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101 | |
ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP | |
Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port | |
Console Management | |
Sun / Oracle Solaris Break Safe | |
Local port buffer viewing - 256K bytes per port | |
External port buffering via NFS, encrypted NFS and Syslog | |
Event notification | |
Manage AC power of external equipment using Perle RPS power management products | |
Clustering - central console server enables access ports across multiple console servers | |
Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console | |
Remote Access | |
Dial, direct serial | PPP, PAP/CHAP, SLIP |
HTTP tunneling enables firewall-safe access to remote serial devices across the internet | |
Automatic DNS Update | Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details |
IPSEC VPN client/servers | Microsoft L2TP/IPSEC VPN client ( native to Windows XP) |
Microsoft IPSEC VPN Client ( native to Windows Vista ) | |
Cisco routers with IPSEC VPN feature set | |
Perle IOLAN SDS/STS and SCS models | |
OA&M ( Operations, Administration and Management ) | |
SNMP V3 - read and write, Perle MIB | |
Syslog | |
Perle Device Manager - Windows based utility for large scale deployments | |
Configurable default configuration | |
Installation Wizard | |
Set a Personalized Factory Default for your IOLANs | |
Protocols | |
IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP |
Hardware Specifications - IOLAN SDSC LDC Console Servers
SDS8C LDC | SDS16C LDC | SDS32C LDC | |
---|---|---|---|
Processor | MPC8349E, 400 Mhz, 750 MIPS | ||
Memory | |||
RAM MB | 64 | 64 | 64 |
Flash MB | 16 | 16 | 16 |
Interface Ports | |||
Number of Serial Ports | 8 | 16 | 32 |
Serial Port Interface | Software selectable RS232 / RS485 / RS422 DTE on RJ45 - RS485: full and half duplex | ||
Sun / Solaris | Sun / Oracle ‘Solaris' Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime | ||
Serial Port Speeds | 50bps to 230Kbps with customizable baud rate support | ||
Data Bits | Configurable for 5,6,7 or 8-bit protocol support Use TruePort to transparently pass 9-bit serial data |
||
Parity | Odd, Even, Mark, Space, None | ||
Flow Control | Hardware, Software, Both, None | ||
Local Console Port | RS232 on RJ45 with DB9 adapter (provided ) | ||
Network | Dual 10/100/1000-base TX Ethernet RJ45 | ||
Software selectable Ethernet speed 10/100/1000, Auto | |||
Software selectable Half/Full/Auto duplex | |||
Failsafe Alarm Relay | 3A@24v DC. Normally open contacts closed by IOLAN when active and opened upon alarm condition or power failure | ||
Power | |||
Dual Power Supply | 2 x Pluggable Terminal Blocks with screw terminals accommodating 28 - 12 AWG wire sizes | ||
Nominal Input Voltage | 24v DC / 48v DC | ||
Input Voltage Range | 18 - 72v DC | ||
Current Consumption @ 18v DC (Amps) | 0.4 | 0.55 | 0.85 |
Current Consumption @ 24v DC (Amps) | 0.3 | 0.4 | 0.65 |
Current Consumption @ 48v DC (Amps) | 0.2 | 0.25 | 0.35 |
Current Consumption @ 72v DC (Amps) | 0.15 | 0.18 | 0.25 |
Typical Power Consumption (Watts) | 11 | 13 | 18 |
Chassis Ground | Grounding screw for a #10 ring terminal | ||
Indicators | |||
LEDs | Power | ||
System Ready | |||
Network Link activity | |||
Serial: Transmit and Receive data per port | |||
Environmental Specifications | |||
Heat Output (BTU/HR) | 37.6 | 44.4 | 61.5 |
MTBF(Hours) | 126,302 | 105,495 | 82,402 |
Calculation model based on MIL-HDBK-217-FN2 @ 30 °C |
|||
Operating Temperature | -40C ambient for 16 hours and +70C ambient for 16 hours without use of fans | ||
Storage Temperature | -40C to 85C, -40F to 185F | ||
Humidity | 5 to 95% (non condensing) for both storage and operation. | ||
Case | SECC Zinc plated sheet metal (1 mm) | ||
Ingress Protection Rating | IP30 | ||
Mounting | 1U - 19" rack, front and rear mounting hardware included. DIN Rail mounting kit optional |
||
Product Weight and Dimensions | |||
Weight | 3.16 kg | 3.18 kg | 3.36 kg |
Dimensions | 1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in) | ||
Packaging | |||
Shipping Weight | 3.96 kg | 3.98 kg | 4.16 kg |
Shipping Dimensions | 59 x 36 x 9 (cm), 23 x 14 x 3.5 (in) | ||
Regulatory Approvals | |||
Network Equipment Building Systems (NEBS) | SR-3580 NEBS Level 3 | ||
GR-1089-CORE : NEBS EMI and Safety | |||
GR-1089-CORE per Verizon VZ.TPR.9205 and ATT-TP-76200 | |||
GR-63-CORE: NEBS Physical Protection | |||
GR-63-CORE / ANSI T1.319 per Verizon VZ.TPR.9305 and ATT-TP-76200 | |||
Emissions | Power Line conducted: IEC 61850-3 Sec 5.8 | ||
CISPR 32:2015/EN 55032:2015 (Class A) | |||
EN55011 (CISPR11) | |||
Telecom Line conducted: IEC 61000-6-4 | |||
Radiated: IEC 61850-3 Sec 5.8 | |||
CISPR 24:2010/EN 55024:2010 | |||
EN61000-3-2 : 2010 Limits for Harmonic Current Emissions | |||
EN61000-3-3 : 2010, Limits of Voltage Fluctuations and Flicker | |||
EMC Interface Immunity | IEC 61850-3 (substations) IEEE 1613 (substations) (C37.90.x) Applies to all ports, signal and power connections |
||
ESD: IEC61000-4-2, 8Kv Contact / 15Kv Air | |||
Radiated RFI: IEC61000-4-3, 20 V/m (80M-1G) | |||
Fast Transients / Burst: IEC61000-4-4, 4Kv Mains , I/O | |||
Surge : IEC61000-4-5 4Kv AC line to Gnd, 2Kv AC Line to Line, 2Kv DC line to Gnd, 1 Kv DC Line to Line, RS232 = balanced, ethernet = unbalanced |
|||
Conducted RF: IEC61000-4-6, 10 Vrms | |||
Magnetic Field: IEC61000-4-8, 100 A/m, 1000 A/m (1 sec) | |||
Dips and Interrupts: IEC61000-4-11, Criteria A/B/C | |||
Oscillatory: EN61000-4-12, 2.5Kv common and differential mode | |||
Low Frequency conducted: EN61000-4-16, 30V 60s, 300V 1s,15Hz-150KHz @ level 3 | |||
Safety | UL/EN/IEC 62368-1 CAN/CSA C22.2 No. 62368-1 IEC 60950-1(ed 2); am1, am2 and EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
||
NEBS GR-1089-CORE ISSUE 4 (Level 3, Type 2 and Type 4) | |||
Other | Reach, RoHS and WEEE Compliant Directive 2011/65/EU restriction of the use of certain hazardous substances in electrical and electronic equipment and meets the following standard:: EN 50581:2012 |
||
CCATS - G168387 | |||
ECCN - 5A992 | |||
HTSUS Number: 8517.62.0020 | |||
Perle Lifetime Warranty |
IOLAN RJ45 Serial Connector Pinout | ||||||
---|---|---|---|---|---|---|
|
Pinout | Direction | EIA-232 | EIA-422 | EIA-485 Full Duplex | EIA-485 Half Duplex |
1 | out | RTS | TxD+ | TxD+ | DATA+ | |
2 | out | DTR | ||||
3 | out | TxD | TxD- | TxD- | DATA- | |
4 | GND | GND | GND | GND | ||
5 | GND | GND | GND | GND | ||
6 | in | RxD | RxD+ | RxD+ | ||
7 | in | DSR | ||||
8 | in | CTS | RxD- | RxD- | ||
(A rolled CAT5 cable will automatically perform DTE to DCE crossover) | ||||||
Optional Perle adapters for use with straight thru CAT5 cabling |
TCP |
---|
Sockets TCP Une connexion par Socket TCP, qui peut être initialisée à partir de l’équipement Série-Ethernet ou de l’hôte/serveur distant. Cela peut se faire soir sur une base point à point, soit sur une base de partage auquel cas un équipement série peut être partagé entre des équipements multiples. Les sessions TCP peuvent être initialisées soit à partir De l’application du serveur TCP ou à partir des adaptateurs série-Ethernet Perle IOLAN. ![]() |
UDP |
Sockets UDP Pour l’utilisation avec des applications UDP, les serveurs Perle IOLAN peuvent convertir les données d ‘équipements série pour le transfert en paquets UDP, en point à point ou en partage entre des équipements multiples. ![]() |
Console Server |
Gestion de Console Pour l’accès aux ports de console distants de routeurs, switches, etc., Les serveurs IOLAN Perle permettent aux administrateurs d’accéder de manière sécurisée aux ports RS232, « in-band » via Reverse Telnet / SSH ou hors bande au moyen de modems numériques. Des modèles Perle IOLAN équipés de modems intégrés sont également disponibles. ![]() |
COM/TTY |
Connecter des Applications Série au moyen d’un Driver de Ports COM/TTY Les Ports Série peuvent être connectés aux serveurs réseaux ou aux stations de travail utilisant le logiciel TruePort de Perle Systems comme un port COM virtuel. Les Sessions peuvent être initialisées soit à partir du serveur Perle IOLAN, soit à partir de TruePort. ![]() |
Tunneling |
Tunneling entre deux équipements Série Le Tunneling en Série vous permet d'établir un lien sur Ethernet vers un port série sur un autre serveur IOLAN. Les deux Ports Série IOLAN doivent être configurés spécifiquement pour le Tunneling en série (Typiquement, un port série est configuré comme serveur du Tunnel tandis que l'autre est configuré en tant que Client du Tunnel) ![]() |
Virtual Modem |
Virtual Modem (Modem Ethernet) Virtual Modem (Modem Ethernet) permet au serveur IOLAN de Perle de simuler une connexion modem. Une fois connecté au serveur IOLAN, une connexion modem est initialisée, le Serveur IOLAN lance une connexion TCP vers un autre serveur IOLAN configuré avec un port série Modem Virtuel ou vers un hôte utilisant une application TCP ![]() |
