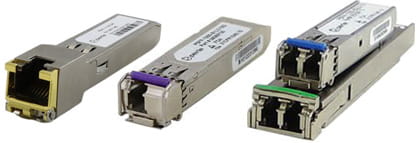

Transmetteur Optique SFP

Modules Optiques encastrables compacts

Module Optique SFP
  • Fibre multimode et fibre monomode
  • Gigabit Ethernet, Fast Ethernet, chaîne Fibre, ATM/SONET, SDH
  • Remplaçable à chaud avec boîtier métallique durable
  • Installable sur n'importe quel port compatible avec Cisco ou MSA SFF -8872
  • Amélioration de l'information numérique de diagnostic
  • Modules CWDM prenant en charge les longueurs d'ondes standards définies par ITU-T G.694.2
  • Boitier SFP résistant aux températures de 0C à +70C (32F à 158F) et -40C à +85C (-40F to 185F)
Demande de Devis

Les Transmetteurs Optiques SFP de Perle sont des connecteurs de médias compacts permutables à chaud qui établissent une connectivité par fibre instantanée pour votre équipement réseau. Ils constituent un moyen rentable de connecter un seul périphérique réseau à une grande variété de distances et types de câbles fibre.

En éliminant le besoin de conserver des unités / périphériques excédentaires des différents types de fibres pour des réparations ou des mises à niveau du réseau, les Transmetteurs Optiques Enfichables Petit Format réduisent les inventaires d'équipements du réseau. Les SFP donnent à un produit la flexibilité d'expansion par vitesse (Fast Ethernet et 1, 10, ou 40 Gigabit) et/ou distance (de 220 m à 80 km).

Les mises à niveau du réseau sont simplifiées car les SFP sont des connecteurs de fibres interchangeables qui peuvent s'adapter à un réseau existant. Par exemple, il suffit de remplacer le Transmetteur Optique enfichable pour qu'un convertisseur de médias qui était initialement utilisé dans un réseau multimode puisse être reconfiguré pour fonctionner sur un réseau CWDM.

Les Transmetteurs Optiques SFP de Perle peuvent être utilisés et échangés sur une grande variété de produits SFP compatibles avec Cisco ou MSA. Ils peuvent se superposer dans des combinaisons de 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, ou 1000BASE-BX10-D/U sur une base port-à-port.

Les Transmetteurs Optiques SFP de Perle sont conçus pour un usage avec les Convertisseurs de Médias SFP de Perle, les Commutateurs Ethernet Industriels, les Console Servers IOLAN SCG et les équipements de tiers qui prennent en charge les Transmetteurs SFP. Sélectionner l'onglet approprié pour plus d’information sur les modèles Duplex, Simplex (BiDi) CWDM ou 10G SFP+ et XFP.

Fonctions des Transmetteurs SFP de Perle

Vaste gamme d'applications Fibre Les protocoles de réseau populaires tels que Ethernet, Chaîne Fibre, ATM/SONET OC-X, SDH STM-X peuvent être utilisés avec ces modules
Compatible Cisco IOS Tous les SFP de Perle peuvent être installés dans les routeurs et multiprises de type SFP de Cisco et sont entièrement compatibles avec le logiciel IOS de Cisco.
Compatible MSA SFF-8472 Tous les SFP sont entièrement conformes au Contrat à Approvisionnements Multiples (CAM)
Informations sur le diagnostic numérique améliorées (DOM ou DMI) Fournit des informations de diagnostic numérique lisibles pour l'équipement géré afin d'assister les administrateurs de réseau dans la maintenance et la gestion du réseau
Modèles pour Températures Industrielles Les modèles adaptés aux températures industrielles (de -40 °C à 85 °C) sont disponibles pour des environnements avec des plages de températures étendues
Modèles CWDM Les Transmetteurs Optiques Enfichables CWDM optimisent la capacité du réseau en transmettant plusieurs chaînes de données à l'aide de longueurs d'ondes optiques distinctes (de 1470 nm à 1610 nm) sur la même paire de fibres. Ces longueurs d'ondes sont conformes à la norme ITU G.694 CWDM.
Sécurité EN 60950-1:2006+A11+A1+A12+A2
Emissions CISPR 32:2015 + COR1:2016 (Class B) / EN55032:2015+AC:2016 (Class B)
EN55011 (CISPR11)
EMC et Immunité CISPR 24:2010/EN 55024:2010
Sécurité du Laser Les transmetteurs à fibre optique sur ce périphérique répondent aux exigences de sécurité du Laser Catégorie 1 prévues par les normes IEC-60825 FDA/CDRH et sont conformes à 21CFR1040.10 et 21CFR1040.11.
EN 60825-1:2014
EN 60825-2:2004+A1+A2
Environmental Compatible Reach, RoHS et WEEE
Autres ECCN: EAR99
Numéro HTSUS: 8517.62.0020
Garantie - retour 2 ans en usine

Select a High Speed Model below to obtain a Part Number -----OR----- Click Here to view Fast Ethernet, SONET OC-3, G.957, SDH STM-1 Models

SFP Model
Connector
Speed
Type
DOM
/ DMI
Temp
Transmit
Receive
Power
Budget
(dB)
Wave-
length
(nm)
Fiber
Type
Core
Size
(um)
Modal
Band-
width
(MHz Km)
Operating
Distance
(dBm)
(dBm)
Min
Max
Min
Max
PSFP-1000-M2LC05 Dual LC 1.25 Gbps 1000Base-SX
Fibre Channel
FICON

(Alternate to Cisco:
GLC-SX-MM)

 No 0 to 70C
(32F to 158F )		 -9.5 -4.0 -17.0 -3.0 7.5 850 MMF 62.5 160 220 m
(722 ft)
62.5 200 275 m
(902 ft)
50 400 500 m
(1,640 ft)
50 500 550 m
(1,804 ft)
50 2000 1000 m
(3281 ft)
PSFP-1000D-M2LC05 Dual LC 1.25 Gbps 1000Base-SX
Fibre Channel
FICON

(Alternate to Cisco:
SFP-GE-S)

 Yes 0 to 70C
(32F to 158F )		 -9.5 -4.0 -17.0 -3.0 7.5 850 MMF 62.5 160 220 m
(722 ft)
62.5 200 275 m
(902 ft)
50 400 500 m
(1,640 ft)
50 500 550 m
(1,804 ft)
50 2000 1000 m
(3281 ft)
PSFP-1000D-M2LC05-XT Dual LC 1.25 Gbps 1000Base-SX
Fibre Channel
FICON

(Alternate to Cisco:
SFP-GE-S)

 Yes -40 to 85C
(-40F to 185F)		 -9.5 -3.0 -18.0 -3.0 8.5 850 MMF 62.5 160 220 m
(722 ft)
62.5 200 275 m
(902 ft)
50 400 500 m
(1,640 ft)
50 500 550 m
(1,804 ft)
50 2000 1000 m
(3281 ft)
PSFP-1000D-M2LC2 Dual LC 1.25 Gbps 1000Base-LX
Fibre Channel
FICON		 Yes 0 to 70C
(32F to 158F )		 -9.0 -1.0 -19.0 -1.0 10.0 1310 MMF 62.5 160 2 km
(1.2 mi)
50 500 1000 m
(3281 ft)
PSFP-1000D-M2LC2-XT Dual LC 1.25 Gbps 1000Base-LX
Fibre Channel
FICON		 Yes -40 to 85C
(-40F to 185F)		 -9.0 -1.0 -19.0 -1.0 10.0 1310 MMF 62.5 160 2 km
(1.2 mi)
50 500 1000 m
(3281 ft)
PSFP-2GD-M2LC03 Dual LC up to 2.67 Gbps 1000Base-SX
Fibre Channel
FC-2
FICON
GR253
SONET OC-48
G.957
SDH STM-16		 Yes 0 to 70C
(32F to 158F )		 -10 -3 -18 -3 8 850 MMF 50 500 300 m
(984 ft)
PSFP-4GD-M2LC05 Dual LC Multi-Rate -
1.063 Gbps
2.125 Gbps
4.25 Gbps		 1000Base-SX
Fibre Channel
FC-1,2,4
FICON		 Yes 0 to 70C
(32F to 158F )		 -9 -2.5 -15 0 6 850 MMF 62.5 200 300 m
(984 ft)
50 500 500 m
(1640 ft)
PSFP-1000-S2LC10 Dual LC Dual Rate -
1.25 Gbps,
1.063 Gbps		 1000Base-LX / LH
Fibre Channel
FC-1
FICON
SONET OC-24-LR-1

(Alternate to Cisco:
GLC-LH-SM)

 No 0 to 70C
(32F to 158F )		 -9.5 -3.0 -21.0 -3.0 11.5 1310 MMF *** 62.5 500 550 m
(1,804 ft)
50 400 550 m
(1,804 ft)
50 400 550 m
(1,804 ft)
SMF ** -
10 km
(6.2 mi)
PSFP-1000D-S2LC10 Dual LC Dual Rate -
1.25 Gbps,
1.063 Gbps		 1000Base-LX / LH
Fibre Channel
FC-1
FICON
SONET OC-24-LR-1

(Alternate to Cisco:
SFP-GE-L)

 Yes 0 to 70C
(32F to 158F )		 -9.0 -3.0 -23.0 -3.0 14.0 1310 MMF *** 62.5 500 550 m
(1,804 ft)
50 400 550 m
(1,804 ft)
50 400 550 m
(1,804 ft)
SMF ** -
10 km
(6.2 mi)
PSFP-1000D-S2LC10-XT Dual LC Dual Rate -
1.25 Gbps,
1.063 Gbps		 1000Base-LX / LH
Fibre Channel
FC-1
FICON
SONET OC-24-LR-1

(Alternate to Cisco:
SFP-GE-L)

 Yes -40 to 85C
(-40F to 185F)		 -9.0 -3.0 -23.0 -3.0 14.0 1310 MMF *** 62.5 500 550 m
(1,804 ft)
50 400 550 m
(1,804 ft)
50 400 550 m
(1,804 ft)
SMF ** - 10 km
(6.2 mi)
PSFP-4GD-S2LC10 Dual LC Multi-Rate -
1.063 Gbps
2.125 Gbps
4.25 Gbps		 1000Base-LX / LH
Fibre Channel
FC-1,2,4
FICON		 Yes 0 to 70C
(32F to 158F )		 -8.0 0.0 -18.0 -3.0 10.0 1310 SMF ** - 10,000 m
(32,821 ft)
PSFP-1000D-S2LC20 Dual LC 1.25 Gbps 1000Base-EX
Fibre Channel
FICON

(Alternate to Cisco:
SFP-GE-L-20)

 Yes 0 to 70C
(32F to 158F )		 -9.0 -3.0 -23.0 -3.0 14.0 1310 SMF ** - 20 km
(12.4 mi)
PSFP-1000D-S2LC20-XT Dual LC 1.25 Gbps 1000Base-EX
Fibre Channel
FICON

(Alternate to Cisco:
SFP-GE-L-RGD-20)

 Yes -40 to 85C
(-40F to 185F)		 -9.0 -3.0 -23.0 -3.0 14.0 1310 SMF ** - 20 km
(12.4 mi)
PSFP-2GD-S2LC20 Dual LC up to 2.67 Gbps 1000Base-LX / LH
Fibre Channel
FC-2
FICON
GR253
SONET OC-48
G.957
SDH STM-16		 Yes 0 to 70C
(32F to 158F )		 -5.0 0.0 -18.0 -3.0 13.0 1310 SMF ** - 20,000 m
(65,617 ft)
PSFP-1000D-S2LC40 Dual LC 1.25 Gbps 1000Base-EX
Fibre Channel
FICON

(Alternate to Cisco:
SFP-GE-L-40)

 Yes 0 to 70C
(32F to 158F )		 -5.0 0.0 -23.0 -3.0 18.0 1310 SMF ** - 40 km
(25 mi)
PSFP-1000D-S2LC40-XT Dual LC 1.25 Gbps 1000Base-EX
Fibre Channel
FICON

(Alternate to Cisco:
SFP-GE-L-RGD-40)

 Yes -40 to 85C
(-40F to 185F)		 -5.0 0.0 -23.0 -3.0 18.0 1310 SMF ** - 40 km
(25 mi)
PSFP-1000D-S2LC80 Dual LC 1.25 Gbps 1000Base-ZX
Fibre Channel
FICON

(Alternate to Cisco:
SFP-GE-Z)

 Yes 0 to 70C
(32F to 158F )		 0.0 5.0 -23.0 -3.0 23.0 1550 SMF ** - 80 km
(50 mi)
PSFP-1000D-S2LC80-XT Dual LC 1.25 Gbps 1000Base-ZX
Fibre Channel
FICON

(Alternate to Cisco:
SFP-GE-Z-RGD)

 Yes -40 to 85C
(-40F to 185F)		 0.0 5.0 -23.0 -3.0 23.0 1550 SMF ** - 80 km
(50 mi)

Protocols: Fast Ethernet, SONET OC-3, G.957, SDH STM-1
PSFP-100-M2LC2 Dual LC Up to 155 Mbps 100Base-FX
SONET OC-3
SDH STM-1

(Alternate to Cisco:
GLC-FE-100FX)

 No 0 to 70C
(32F to 158F )		 -19.0 -14.0 -32.0 -3.0 13.0 1310 MMF 50.0 500 5km *
(3.1 mi)
62.5 2km
(1.2 mi)
PSFP-100D-M2LC2-XT Dual LC Up to 155 Mbps 100Base-FX
SONET OC-3
SDH STM-1

(Alternate to Cisco:
GLC-FE-100FX-RGD)

 Yes -40 to 85C
(-40F to 185F)		 -20.0 -14.0 -31.0 -3.0 11.0 1310 MMF 50.0 500 5km *
(3.1 mi)
62.5 2km
(1.2 mi)
PSFP-100D-M2LC05 Dual LC Up to 155 Mbps 100Base-SX
SONET OC-3
SDH STM-1		 Yes 0 to 70C
(32F to 158F )		 -8.0 -3.0 -19.0 -3.0 11.0 850 MMF 50.0 500 550 m
(1804 ft)
62.5 200 300 m
(990 ft)
PSFP-100D-S2LC10 Dual LC up to 155 Mbps 100Base-LX
SONET OC-3
SDH STM-1

(Alternate to Cisco:
GLC-FE-100LX)

 Yes 0 to 70C
(32F to 158F )		 -14.0 -8.0 -32.0 -3.0 18.0 1310 SMF ** - 10km
(6.2 mi)
PSFP-100D-S2LC10-XT Dual LC up to 155 Mbps 100Base-LX
SONET OC-3
SDH STM-1

(Alternate to Cisco:
GLC-FE-100LX-RGD)

 Yes -40 to 85C
(-40F to 185F)		 -14.0 -8.0 -32.0 -3.0 18.0 1310 SMF ** - 10km
(6.2 mi)
PSFP-100D-S2LC40 Dual LC up to 155 Mbps 100Base-EX
SONET OC-3
SDH STM-1

(Alternate to Cisco:
GLC-FE-100EX)

 Yes 0 to 70C
(32F to 158F )		 -5.0 0.0 -34.0 -3.0 29.0 1310 SMF ** - 40km
(25 mi)
PSFP-100D-S2LC80 Dual LC up to 155 Mbps 100Base-ZX
SONET OC-3
SDH STM-1

(Alternate to Cisco:
GLC-FE-100ZX)

 Yes 0 to 70C
(32F to 158F )		 -5.0 0.0 -34.0 -3.0 29.0 1550 SMF ** - 80km
(50 mi)

* 1db/km multimode 50/125 micron fiber cable

** ITU-T G.652 SMF as specified by the IEEE 802.3z standard.

*** A mode-conditioning adapter as specified by the IEEE standard, is required regardless of the span length. Note how the mode conditioning adapter for 62.5-um fibers has a different specification from the mode-conditioning adapter for 50-um fibers.

Select a High Speed Model below to obtain a Part Number -----OR----- Click Here to view Fast Ethernet, SONET OC-3, G.957, SDH STM-1 Models

Single Fiber Models Recommended use in pairs

SFP Model
Connector
Speed
Type
DOM
/ DMI
Case Temp
Transmit
Receive
Power
Budget
(dB)
Wave-
length
(nm)
Fiber
Type
Core
Size
(um)
Operating
Distance
(dBm)
(dBm)
Min
Max
Min
Max
PSFP-1000D-M1LC2D Single LC Dual Rate -
1.25 Gbps,
1.063 Gbps		 1000Base-BX10-U
Fibre Channel
FICON
SONET OC-24-LR-1
 Yes 0 to 70C
(32F to 158F )		 -10 -4.0 -22.0 -3.0 12.0 1550 / 1310 MMF ** 2 km
(1.24 mi)
PSFP-1000D-M1LC2U Single LC Dual Rate -
1.25 Gbps,
1.063 Gbps		 1000Base-BX10-U
Fibre Channel
FICON
SONET OC-24-LR-1
 Yes 0 to 70C
(32F to 158F )		 -10 -4.0 -22.0 -3.0 12.0 1310 / 1550 MMF ** 2 km
(1.24 mi)
PSFP-1000-S1LC10U Single LC Dual Rate -
1.25 Gbps,
1.063 Gbps		 1000Base-BX10-U
Fibre Channel
FICON
SONET OC-24-LR-1

(Alternate to Cisco:
GLC-BX-U)

 No 0 to 70C
(32F to 158F )		 -9.0 -3.0 -20.0 -3.0 11.0 1310 / 1490 SMF ** 10 km
(6.2 mi)
PSFP-1000-S1LC10D Single LC Dual Rate -
1.25 Gbps,
1.063 Gbps		 1000Base-BX10-D
Fibre Channel
FICON
SONET OC-24-LR-1

(Alternate to Cisco:
GLC-BX-D)

 No 0 to 70C
(32F to 158F )		 -9.0 -3.0 -20.0 -3.0 11.0 1490 / 1310 SMF ** 10 km
(6.2 mi)
PSFP-1000D-1LC10U-XT Single LC Dual Rate -
1.25 Gbps,
1.063 Gbps		 1000Base-BX10-U
Fibre Channel
FICON
SONET OC-24-LR-1		 Yes -40 to 85C
(-40F to 185F )		 -9.0 0.0 -23.0 -3.0 14.0 1310 / 1490 SMF ** 10 km
(6.2 mi)
PSFP-1000D-1LC10D-XT Single LC Dual Rate -
1.25 Gbps,
1.063 Gbps		 1000Base-BX10-D
Fibre Channel
FICON
SONET OC-24-LR-1		 Yes -40 to 85C
(-40F to 185F )		 -9.0 0.0 -23.0 -3.0 14.0 1490 / 1310 SMF ** 10 km
(6.2 mi)
PSFP-1000D-S1LC40U Single LC Dual Rate -
1.25 Gbps,
1.063 Gbps		 1000Base-BX
Fibre Channel
FICON
SONET OC-24-LR-1

(Alternate to Cisco:
GLC-BX-U-40)

 Yes 0 to 70C
(32F to 158F )		 -5.0 0.0 -23.0 -3.0 18.0 1310 / 1490 SMF ** 40 km
(25 mi)
PSFP-1000D-S1LC40D Single LC Dual Rate -
1.25 Gbps,
1.063 Gbps		 1000Base-BX
Fibre Channel
FICON
SONET OC-24-LR-1

(Alternate to Cisco:
GLC-BX-D-40)

 Yes 0 to 70C
(32F to 158F )		 -5.0 0.0 -23.0 -3.0 18.0 1490 / 1310 SMF ** 40 km
(25 mi)
PSFP-1000D-S1LC60U Single LC Dual Rate -
1.25 Gbps,
1.063 Gbps		 1000Base-BX
Fibre Channel
FICON
SONET OC-24-LR-1
GLC-BX-U-60		 Yes 0 to 70C
(32F to 158F )		 -1.0 4.0 -26.0 -3.0 25.0 1490 / 1550 SMF ** 60 km
(37 mi)
PSFP-1000D-S1LC60D Single LC Dual Rate -
1.25 Gbps,
1.063 Gbps		 1000Base-BX
Fibre Channel
FICON
SONET OC-24-LR-1
GLC-BX-D-60		 Yes 0 to 70C
(32F to 158F )		 -1.0 4.0 -26.0 -3.0 25.0 1550 / 1490 SMF ** 60 km
(37 mi)
PSFP-1000D-S1LC80U Single LC Dual Rate -
1.25 Gbps,
1.063 Gbps		 1000Base-BX
Fibre Channel
FICON
SONET OC-24-LR-1

(Alternate to Cisco:
GLC-BX-U-80)

 Yes 0 to 70C
(32F to 158F )		 -1.0 4.0 -26.0 -3.0 25.0 1490 / 1550 SMF ** 80 km
(50 mi)
PSFP-1000D-S1LC80D Single LC Dual Rate -
1.25 Gbps,
1.063 Gbps		 1000Base-BX
Fibre Channel
FICON
SONET OC-24-LR-1

(Alternate to Cisco:
GLC-BX-D-80)

 Yes 0 to 70C
(32F to 158F )		 -1.0 4.0 -26.0 -3.0 25.0 1550 / 1490 SMF ** 80 km
(50 mi)

Protocols: Fast Ethernet, SONET OC-3, SDH STM-1
PSFP-100D-S1LC10U Single LC Up to 155 Mbps 100Base-BX
SONET OC-3
SDH STM-1

(Alternate to Cisco:
GLC-FE-100BX-U)

 Yes 0 to 70C
(32F to 158F )		 -14.0 -8.0 -32.0 -3.0 18.0 1310 / 1550 SMF ** 10 km
(6.2 mi)
PSFP-100D-S1LC10U-XT Single LC Up to 155 Mbps 100Base-BX
SONET OC-3
SDH STM-1

(Alternate to Cisco:
GLC-FE-100BX-U-RGD)

 Yes -40 to 85C
(-40F to 185F )		 -14.0 -8.0 -32.0 -3.0 18.0 1310 / 1550 SMF ** 10 km
(6.2 mi)
PSFP-100D-S1LC10D Single LC Up to 155 Mbps 100Base-BX
SONET OC-3
SDH STM-1

(Alternate to Cisco:
GLC-FE-100BX-D)

 Yes 0 to 70C
(32F to 158F )		 -14.0 -8.0 -32.0 -3.0 18.0 1550 / 1310 SMF ** 10 km
(6.2 mi)
PSFP-100D-S1LC10D-XT Single LC Up to 155 Mbps 100Base-BX
SONET OC-3
SDH STM-1

(Alternate to Cisco:
GLC-FE-100BX-D-RGD)

 Yes -40 to 85C
(-40F to 185F )		 -14.0 -8.0 -32.0 -3.0 18.0 1550 / 1310 SMF ** 10 km
(6.2 mi)
PSFP-100D-S1LC20U Single LC Up to 155 Mbps 100Base-BX
SONET OC-3
SDH STM-1

(Alternate to Cisco:
GLC-FE-100BX-U)

 Yes 0 to 70C
(32F to 158F )		 -14.0 -8.0 -32.0 -3.0 18.0 1310 / 1550 SMF ** 20 km
(12.4 mi)
PSFP-100D-S1LC20D Single LC Up to 155 Mbps 100Base-BX
SONET OC-3
SDH STM-1

(Alternate to Cisco:
GLC-FE-100BX-D)

 Yes 0 to 70C
(32F to 158F )		 -14.0 -8.0 -32.0 -3.0 18.0 1550 / 1310 SMF ** 20 km
(12.4 mi)
PSFP-100D-S1LC40U Single LC Up to 155 Mbps 100Base-BX
SONET OC-3
SDH STM-1

(Alternate to Cisco:
GLC-FE-100BX-U)

 Yes 0 to 70C
(32F to 158F )		 -5.0 0.0 -32.0 -3.0 27.0 1310 / 1550 SMF ** 40 km
(25 mi)
PSFP-100D-S1LC40D Single LC Up to 155 Mbps 100Base-BX
SONET OC-3
SDH STM-1

(Alternate to Cisco:
GLC-FE-100BX-D)

 Yes 0 to 70C
(32F to 158F )		 -5.0 0.0 -32.0 -3.0 27.0 1550 / 1310 SMF ** 40 km
(25 mi)
PSFP-100D-S1LC80U Single LC Up to 155 Mbps 100Base-BX
SONET OC-3
SDH STM-1

(Alternate to Cisco:
GLC-FE-100BX-U)

 Yes 0 to 70C
(32F to 158F )		 -5.0 0.0 -32.0 -3.0 27.0 1490 / 1550 SMF ** 80 km
(50 mi)
PSFP-100D-S1LC80D Single LC Up to 155 Mbps 100Base-BX
SONET OC-3
SDH STM-1

(Alternate to Cisco:
GLC-FE-100BX-D)

 Yes 0 to 70C
(32F to 158F )		 -5.0 0.0 -32.0 -3.0 27.0 1550 / 1490 SMF ** 80 km
(50 mi)

**ITU-T G.652 SMF as specified by the IEEE 802.3z standard.

Single Mode / Single Fiber

Connect copper ports over a single fiber strand ( also referred to as “Bi-Directional” BiDi )
When Single Strand fiber is used, a pair of Single Fiber Media Converters is needed for the copper to fiber conversion. Perle Single Fiber Media Converters are also referred to as “Up/Down” models. For example the PSFP-1000-S1LC10U (“Up”) and PSFP-1000-S1LC10D (“Down”), shown below, must be used in pairs. An “Up” must be matched with a “Down” peer to deal with transmit and receive frequencies separately.

Single Mode Fiber Diagram PSFP-1000-S1LC10UPSFP-1000-S1LC10D

The majority of installations for single mode fiber media converters are of the “dual connector” or “dual fiber” type where one fiber connection is used for transmit, the other for receive. These are physically “crossed” to match up the Transmit/Receive links.

However, to reduce costs, or where there are limits on available fiber, WDM technology may be utilized. WDM uses separate transmit and receive frequencies to communicate on a single fiber strand. WDM technology relies on the fact that optical fibers can carry many wavelengths of light simultaneously without interaction between each wavelength. Thus, a single fiber can carry many separate wavelength signals or channels simultaneously.

So remember, if Single Strand fiber is used, you will need an “Up” Media Converter on one side and a “Down” Media Converter on the other for copper to fiber conversion.

Perle offers a wide variety of Single Fiber (“Up/Down”) Media Converters to connect 10BaseT, Fast Ethernet and Gigabit to single fiber. Whether you need Managed or Unmanaged, Standalone or Modular Chassis Based, 20km or 120km, Perle has the right model to meet your fiber conversion requirement.

Select a Model to obtain a Part Number

CWDM ( coarse wavelength division multiplexing ) Models

SFP Model
Connector
Speed
Type
DOM
/ DMI
Case Temp
Transmit
Receive
Power
Budget
(dB)
Wave-
length
(nm)
Fiber
Type
Core
Size
(um)
Operating
Distance
(dBm)
(dBm)
Min
Max
Min
Max
PSFP-CWDM-SFP-1470 Dual LC up to 2.67 Gbps 1000Base-CWDM
Fibre Channel
Yes 0 to 70C
(32F to 158F )		 0.0 5.0 -28.0 -9.0 28.0 1470 SMF ** 80 km
(50 mi)
PSFP-CWDM-SFP-1490 Dual LC up to 2.67 Gbps 1000Base-CWDM
Fibre Channel
Yes 0 to 70C
(32F to 158F )		 0.0 5.0 -28.0 -9.0 28.0 1490 SMF ** 80 km
(50 mi)
PSFP-CWDM-SFP-1510 Dual LC up to 2.67 Gbps 1000Base-CWDM
Fibre Channel
Yes 0 to 70C
(32F to 158F )		 0.0 5.0 -28.0 -9.0 28.0 1510 SMF ** 80 km
(50 mi)
PSFP-CWDM-SFP-1530 Dual LC up to 2.67 Gbps 1000Base-CWDM
Fibre Channel
Yes 0 to 70C
(32F to 158F )		 0.0 5.0 -28.0 -9.0 28.0 1530 SMF ** 80 km
(50 mi)
PSFP-CWDM-SFP-1550 Dual LC up to 2.67 Gbps 1000Base-CWDM
Fibre Channel
Yes 0 to 70C
(32F to 158F )		 0.0 5.0 -28.0 -9.0 28.0 1550 SMF ** 80 km
(50 mi)
PSFP-CWDM-SFP-1570 Dual LC up to 2.67 Gbps 1000Base-CWDM
Fibre Channel
Yes 0 to 70C
(32F to 158F )		 0.0 5.0 -28.0 -9.0 28.0 1570 SMF ** 80 km
(50 mi)
PSFP-CWDM-SFP-1590 Dual LC up to 2.67 Gbps 1000Base-CWDM
Fibre Channel
Yes 0 to 70C
(32F to 158F )		 0.0 5.0 -28.0 -9.0 28.0 1590 SMF ** 80 km
(50 mi)
PSFP-CWDM-SFP-1610 Dual LC up to 2.67 Gbps 1000Base-CWDM
Fibre Channel
Yes 0 to 70C
(32F to 158F )		 0.0 5.0 -28.0 -9.0 28.0 1610 SMF ** 80 km
(50 mi)

**ITU-T G.652 SMF as specified by the IEEE 802.3z standard.

Haut de page
